iLumi-PN-SS304-185
DMX-SSR-16
16 Channels Solid State Relay output
This DMX-SSR-16 to drive electronic control components in a multimedia show environment. The Decoder has 16 outputs (type NPN). It is the perfect tool to directly control Solenoid valve, DC light bulb into a DMX512 network.
The DMX bus should be terminated with a 120 Ohm resistor (not included).
Description
Technical information
| iLumi-PN-SS304-185 | |

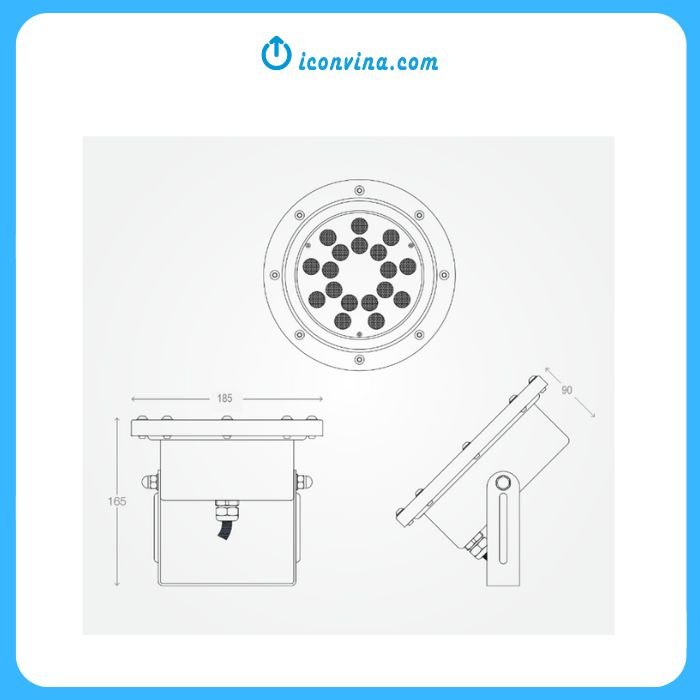

| Dimensions (DxHxInner hole) | 185x90mm |
| Power | 24VDC-36W |
| LED chip | 12pcs x 3in1 RGB |
| Beam angle | 150 / 300 (default) / 450 / 600 |
| Protection class | IP68 |
| Control protocol | DMX512 |
| No of DMX channel | 3 channels: Red – Green – Blue |
| Length of cables | 6 cores cable: 2m long (default) |
| Material | Full body: SS304 /SS316 (on request) |
| Protection | Reverse polarity | 16-step thermal |
