2D FINGER/FAN Robotic nozzle

The 2D FINGER/FAN Robotic nozzle  is designed to enhance the functionality of 1D multidirectional nozzles by supporting the mounting of lights or other equipment up to 5kg without compromising movement. This advanced motor replaces traditional stepper motors used in 1D, 2D, and 3D applications, offering improved performance and versatility.

Description

The 2D FINGER/FAN Robotic nozzle  is designed to enhance the functionality of 1D multidirectional nozzles by supporting the mounting of lights or other equipment up to 5kg without compromising movement. This advanced motor replaces traditional stepper motors used in 1D, 2D, and 3D applications, offering improved performance and versatility.

Features and Benefits

  • This version is an upgrade from 1D multidirectional nozzle to be able to carry lights or other equipment up to 5kg weight without affect the movement.
  • Our new motor is designed to replace conventional stepper motor using for multidirectional nozzle 1D, 2D, 3D.
  • Protection class: IP68.
  • Operation voltage: 24VDC.
  • Power consumption (@maximum): ICON-SERVO100 + 40: 140W
  • Control type: DMX512(2 channel)/ Modbus/ Other type (on request)
  • Not required external driver, communicate directly to DMX show controller or PLC or computer.
  • No external home sensor, an absolute position sensor is integrated inside motor to do all the jobs.

Technical information

2D fan multidirectional nozzle

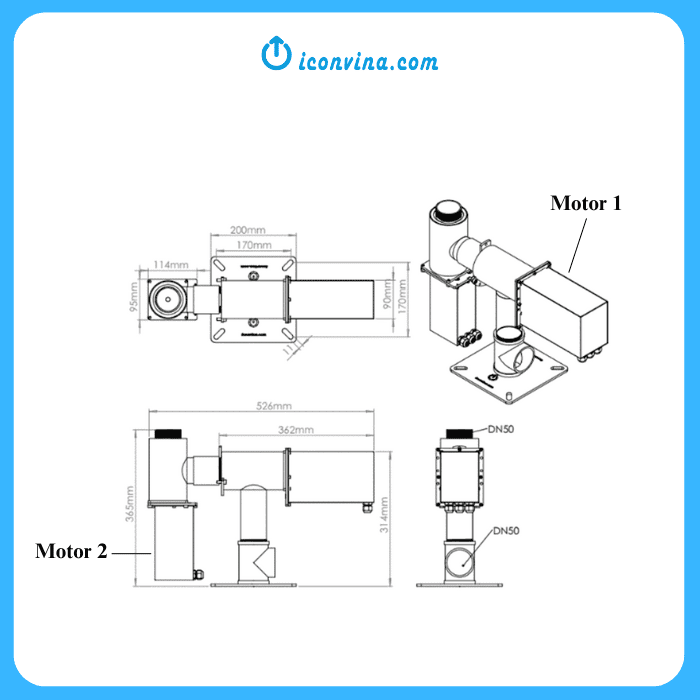

Dimensions (LxWxH):526 x 200 x 365 mm
Weight (kg): 12.5
Protection class:IP68
Power supply (Motor1 + Motor2):18..30V DC / 140W
Torque (N/m):(motor 1)11.45 / (motor 2)6.48
Speed (RPM) Motor 1:75
Speed (RPM) Motor 2:90
Limit angle (degree) Motor 1:limit -900à+900
Limit angle (degree) Motor 2:3600
No. DMX channel:4 channels
DMX control:MOTOR 1 (PAN axis): Channel 1 – 2;

Channel 1: 0-254: OFF-central | 255: Angle controlled

Channel 2: 0- 255: pan angle control linear from min angle to max angle

MOTOR 2 (ROTATE axis): Channel 3 – 4;

Channel 3: 0: OFF-central | 128-254: continuous rotation | 255: Angle controlled

Channel 4:

If channel 3: 1-254: channel 4 controls rotation speed and direction

If channel 3: 255: channel 4 controls angle: 0à3600
